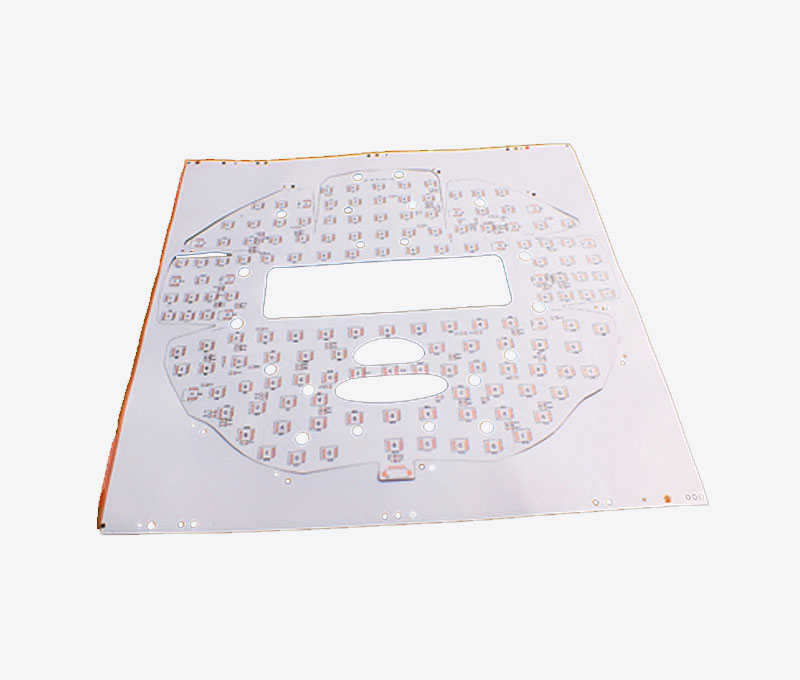

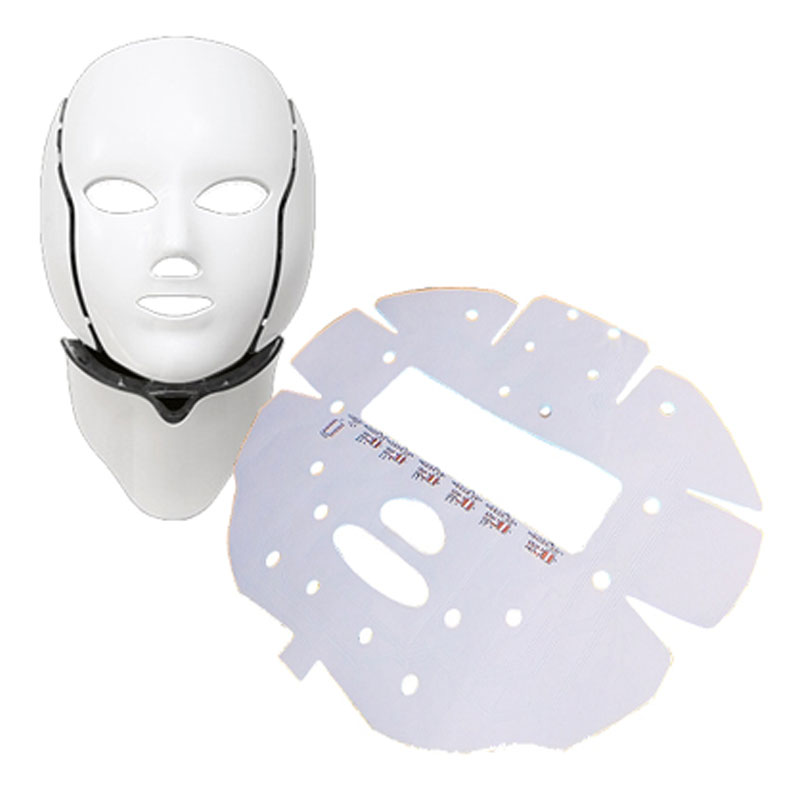

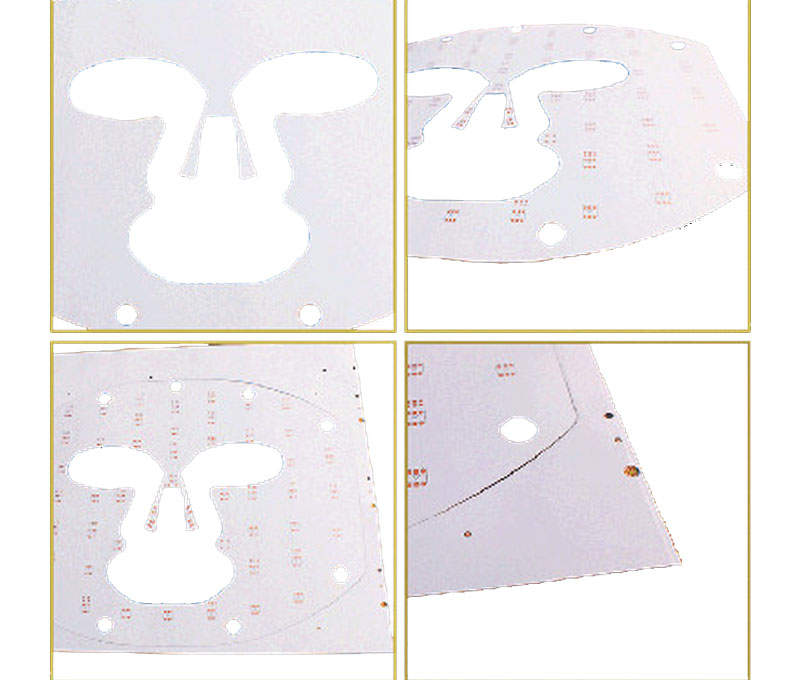

Facial Beauty Equipment FPC Flexible Circuit Board

Premium Electronic Circuit Board Components

Fast delivery time, delivered in as fast as 24 hours
Experienced printed circuit assembly team to provide support
Global component procurement network to ensure original supply
Four smart factories with strong Box Build Assembly production capabilities
Passed ISO 9001, ISO 14001, IATF 16949 and other international quality management system certifications

● Layers: 2-layer FPC

● Single chip size: 312X285MM/customized

● Copper Thickness: 0.5OZ, to ensure conductive stability

● Plate thickness: 0.2MM ± 0.03MM, ultra-thin FPC design suitable for high-flexibility applications

● Excipients/PI: None, customizable high-temperature resistant PI film

● Craftsmanship: white film black characters

● Surface treatment: OSP (organic anti-oxidation treatment)

● Test: 100% electric test

● Forming: Laser cutting

● Substrate: Electrolytic copper and rolled copper are conventional materials

● Shape processing: Manual, Laser Cutting, Mold Punching

● Surface treatment: OSP (anti-oxidation), immersion gold, immersion silver, immersion tin

● Line width & spacing: Minimum 2mil/2mil (0.05mm), suitable for precision FPC manufacturing

● Aperture size: Minimum 0.15mm, Maximum 0.65mm (Ensuring High Precision Drilling)

● Processing size: up to 1200mmX250mm (Ultra-Wide FPC Available)

● Reinforcement: FR-4 reinforcement, steel sheet reinforcement, PI reinforcement, electromagnetic film

● Accessories: shielding film 3M adhesive tape (need to be clearly marked in the document drawing)

● Soft board material: FPC substrate must have extremely low dimensional expansion and contraction rates to ensure stability

● Single and double panels: Dimensional fluctuations must be strictly controlled to improve circuit board reliability

● Rigid board material:

Copper-clad FR-4 : Enhance mechanical strength and improve heat resistance
PP (non-flowing) + Cu (PP Non-Flowing + Copper): Optimize lamination process and improve electrical performance
RCC (non-flowing): Suitable for high-density flexible circuit boards
